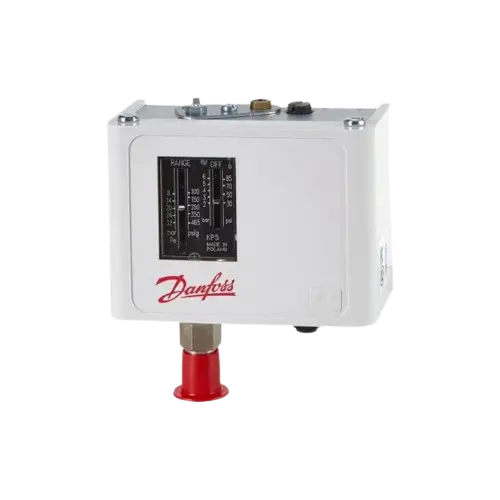

Danfoss KP5 High Pressure Control Auto Reset
Product Code: 060-117166
Range 8 to 32 bar
MADE IN POLAND
Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 1.80 - 6.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 35.0
What is meant by (PRESSURE SWITCH) :
It is a device that turns on an electrical contact when a pre-set fluid pressure is reached. The switch makes an electrical contact either when the pressure rises or the pressure drops from a certain pre-determined pressure level. Pressure switches are found in a wide range of industrial and residential applications such as HVAC systems, well pumps, furnaces, etc.
KP pressure switches are intended for use in refrigeration and air conditioning systems to provide protection against excessively low suction pressure or excessively high discharge pressure.
KP pressure switches are also used to start and stop refrigeration compressors and fans on air-cooled condensers.
Data sheet :
Pressure Switch Type KP
KP Pressure switches cross reference list
Installation guide :
Pressure switch
Cutting Ring Coupling
Visuals :
Pressure Switch Drawing
pressure Switch Drawing Dimension
