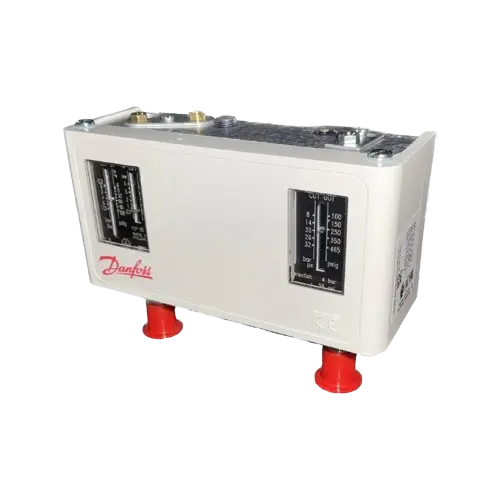

Danfoss KP15 Dual Pressure Switch Auto Reset
Product Code: 060-124166
Regulation left side [bar]Pe: -0.20 - 7.50,
Regulation right side [bar]Pe: 8.0 - 32.0,
Differential left side [bar]: 0.70 - 4.00,
Differential right side [bar]: 4.0,
Contact function: SPDT, Reset function, left side: Auto
What is meant by (PRESSURE SWITCH) :
It is a device that turns on an electrical contact when a pre-set fluid pressure is reached. The switch makes an electrical contact either when the pressure rises or the pressure drops from a certain pre-determined pressure level. Pressure switches are found in a wide range of industrial and residential applications such as HVAC systems, well pumps, furnaces, etc.
MADE IN POLAND
KP pressure switches are intended for use in refrigeration and air conditioning systems to provide protection against excessively low suction pressure or excessively high discharge pressure.
KP pressure switches are also used to start and stop refrigeration compressors and fans on air-cooled condensers.
Data sheet :
Pressure Switch Type KP
Installation guide :
Pressure switch
Cutting Ring Coupling
Visuals :
Pressure Switch Drawing

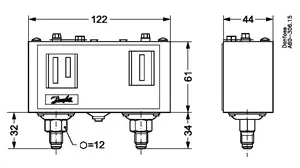

pressure Switch Drawing Dimension
