Filter Drier​

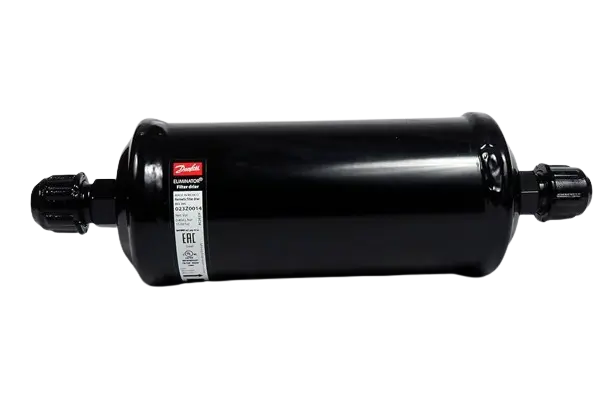

DCL 305 Filter Drier -Danfoss
Product Code: ​023Z0014

Connection Size: 5/8"
Connection Type: Flare

Type designation: DCL 305

  ​Danfoss 023Z0014 5/8in Liquid Line Refrigerant AC Filter Drier hvac refrigeration Flare 10.5-15.7tons Unidirectional 10-1/4in Long 3-1/8in Wide DCL 305
Universal: Simple Drop-In Replacements For Most Dirers Installed In Refrigeration, Air Conditioning And Heat Pump Units
Details: Solid Bronze Inlet And Outlet Flare Connections. Max Temperature 160 F (70C) Min Temperature -40F (-40C)
Core: Solid Core With 80% Molecular Sieve And 20% Activated Alumina To Adsorb System Moisture And Capture Acid And Preve
