Filter Drier​

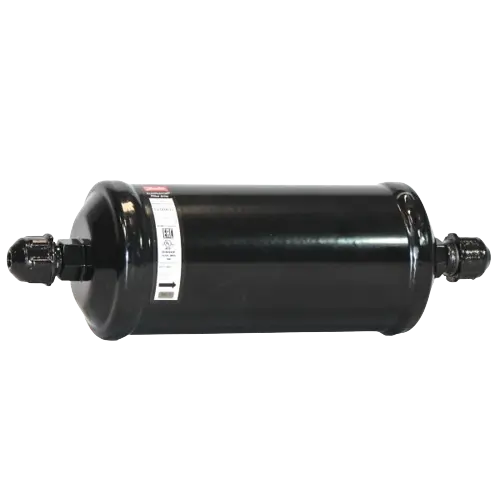

DCL 304 Filter Drier -Danfoss
Product Code: ​023Z0013

Connection Size: 1/2"
Connection Type: Flare

Type designation: DCL 304

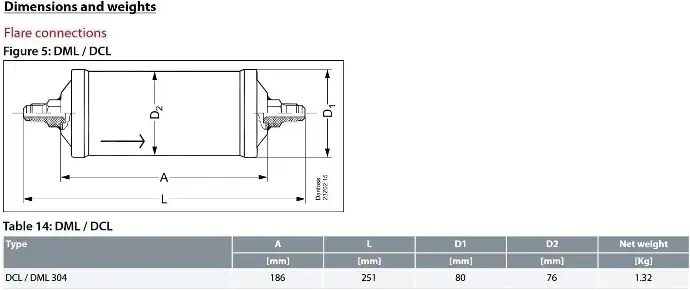

 Filter dryers DCL 304 Danfoss 023Z0013, flanged 1/2 inch SAE for CFCs and HCFCs refrigerants and mineral or alkyl benzene oils 80% molecular sieve with 20% activated aluminum oxide, connection: solder 1/2 inch (12 mm) SAE, filter area: 378 cm2, volume: 0.224 L, absorbency: 6.40 g, temperature range: -40 ° to + 70 ° C, maximum operating pressure: 46 bar, weight: 1.32 kg
