Copper Brazing Alloy​

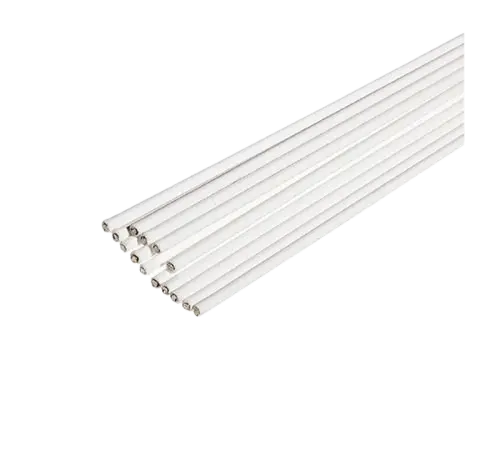

Silver Brazing Alloy 20% (White)
Cu43ZnAg
Silver Content: 20%
Dimension: 2.0x 500 mm


A premium Silver solder brazing rod for maximum bond strength in TIG or Oxy brazing most materials. 20% silver solder has excellent hardness & wear-resisting properties. Good general-purpose alloy with exceptional strength & narrow melting range making it ideal for production brazing & maintenance work because of its ease of application and low melting point.

  • Excellent hardness and wear resistance.
  • High strength bond
  • General purpose flux-cored silver brazing alloy.
Product Specifications
CHEMICAL COMPOSITION

Ag (Silver): 20% / Cu (Copper): 44%
Zn (Zinc): 35.7% / Si (Silicon): 0.2%

  Used in brazing processes for the electrical industry and for brass parts.
  Self fluxing rods with low melting point.
  Suitable for applications: tube/ fittigs and valves.

  Ideal for brazing steel and other ferrous metals
  Refrigeration pipe joints requiring the high bond
  Fire service fittings
  Great for TIG or Oxy brazing most materials

  • HARRIS (United States)
  • STELLA (ITALY)
  • SALDFLUX (ITALY)
